A close look at the SNES audio circuitry around the small SMD chip and surrounding components. Time for another attempt at getting sound out of it!

Long-time readers might remember the S-MIX chip with a physical hole blown in it on my old SNSP-CPU-1CHIP-02 Super Nintendo mainboard. That was quite a sight! Now Iโ€™ve got another 1CHIP Super Nintendo with no sound, so perhaps itโ€™s time to revisit the idea.

Rather than go hunting for another S-MIX chip, Iโ€™ve been looking at whether I can get audio directly from the UPD6379A DAC at U6. If I can bypass the troublesome part of the circuit, I might at least be able to get the machine making some noise again.

Close-up of a Super Nintendo motherboard showing blue and green wires routed between small surface-mounted components near the audio circuitry.

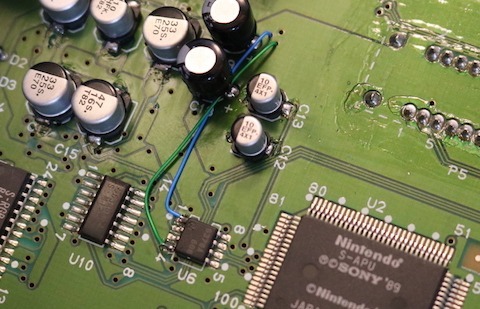

The added wires on the SNES motherboard show the experimental audio bypass. It worked on this board, though that doesnโ€™t prove itโ€™s safe as a permanent fix.

I reversed the polarity! โ€ฆI kid, I kid. What Iโ€™ve actually done is run audio from the DAC to the AV output on the underside of the board, bypassing the S-MIX path. Some 30 AWG Kynar wire fits rather nicely through the vias, which makes the whole arrangement a little easier to put together.

And would you believe it? Weโ€™ve got sound! Iโ€™ve been playing Madden and, from what I can tell, all the game audio is there too. Thatโ€™s considerably better than a Super Nintendo sitting around in silence.

Audio issue solved? Fixed? Repaired? Sound for everyone? So it seems! :)

Will it be good for the system in the long term? I have absolutely no idea. Borti raised a good point about the possibility of damaging the DAC by driving a long cable directly from it. Bypassing the S-MIX isnโ€™t quite the same as restoring the original audio circuit, so this is a workaround thatโ€™s working on my particular board rather than something Iโ€™d recommend blindly applying to every no-sound SNES.

For now, though, itโ€™s nice to have this one making noise again! Big thanks to Stian, Armando92, Borti and Console5 for the information that got me this far.
