Sega Mega-CD Development Unit Disassembly

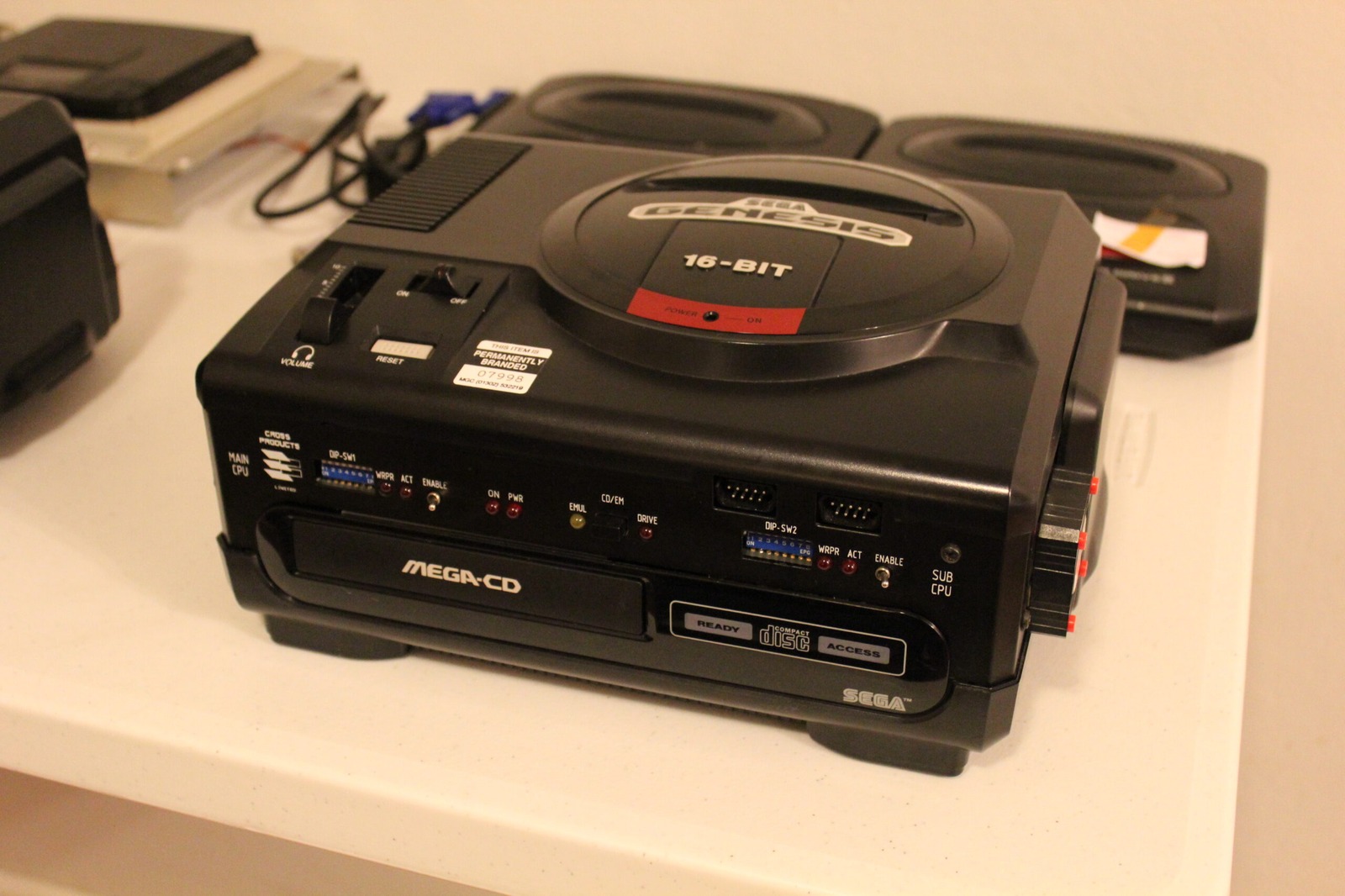

The Sega Mega-CD Development Unit MCD01/0174 also known as Cross Products SNASM Mega-CD is our next target to be disassembled and photographed.This is one beefed up devkit.

I’ll probably finish the photographing a little late this month or early next. Keep an eye out on the photo gallery for more photos as always. Incredible how they managed to sandwich in another board without that much of a compromise in height. Hope you enjoy poking around in this one as much as I’ll enjoy trying to remember where all the screws went… errr just kidding?
