Aiwa Mega-CD Game Unit BIOS Chip Socket Install & Trace Repair

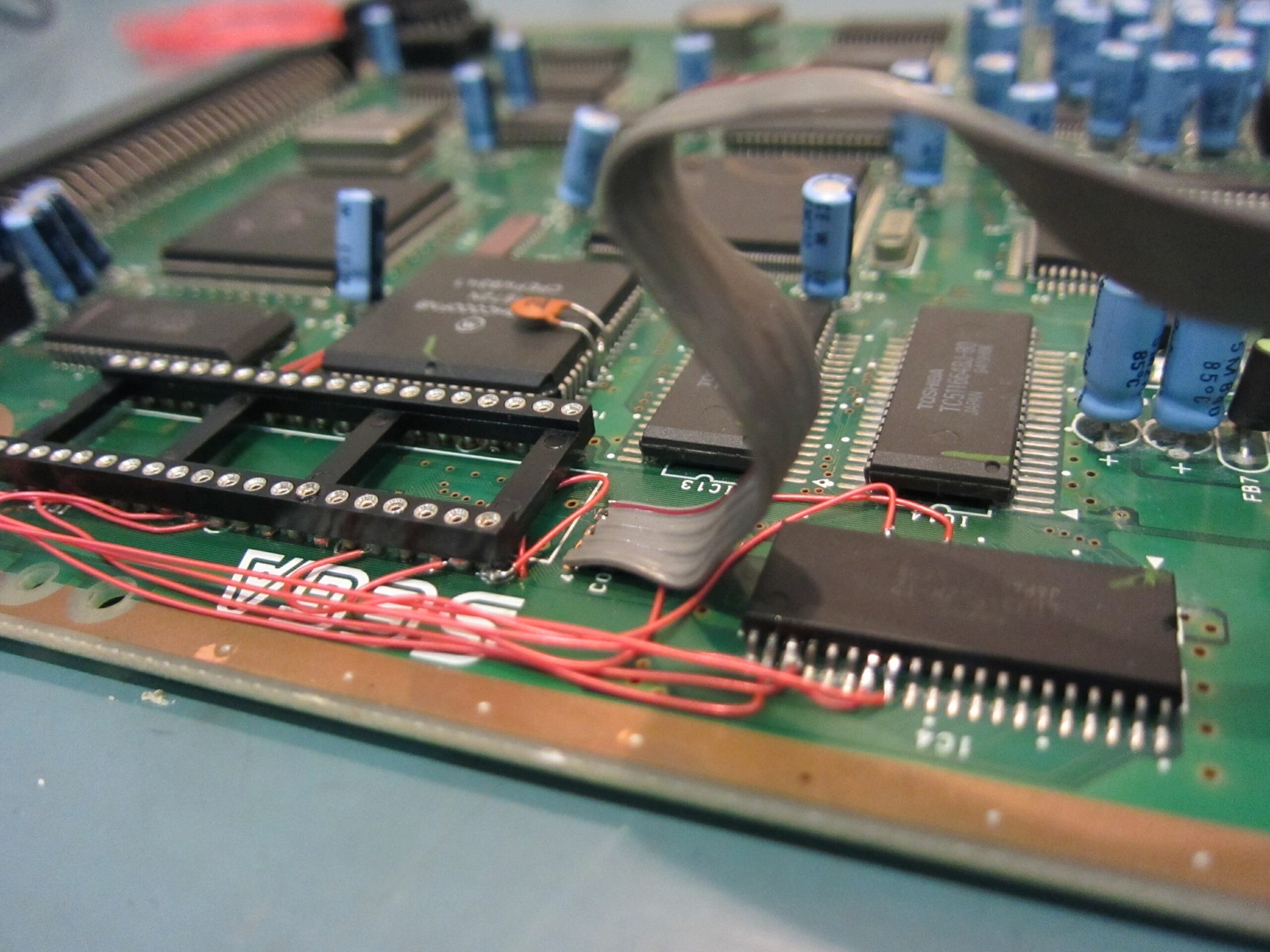

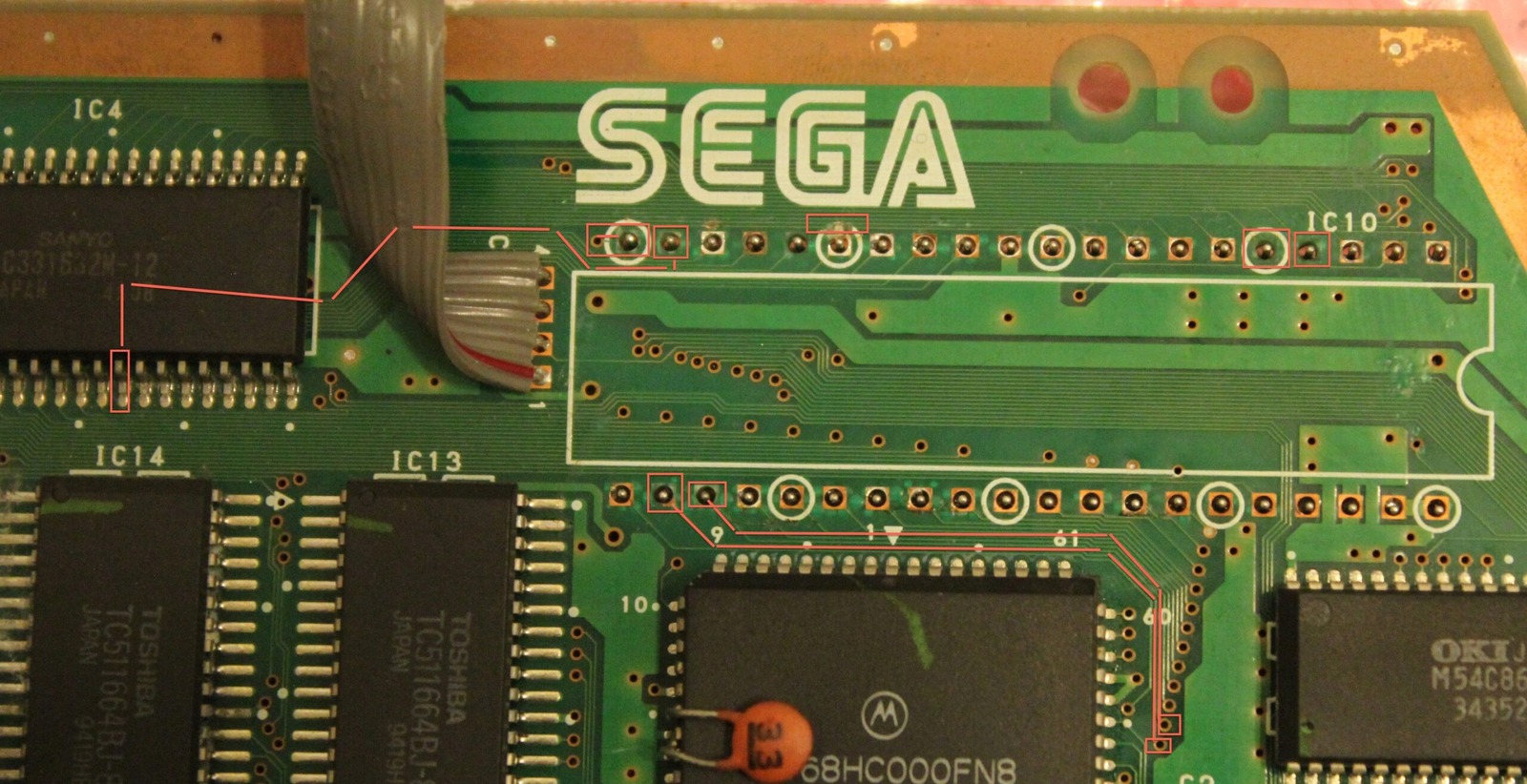

Here we are with the Aiwa Game Unit again and we are onto attempting the repair. It actually turned out quite well. Took a while to trace back all the connections, but we got there!

Continuity shows as good between all the points and none are reporting any shorts, which is great news! We are ready to test… but I need the boom box part to be somewhat functional first… more repairs on the way!

References
https://web.archive.org/web/20191113105414/https://assemblergames.com/threads/region-free-bios-for-mega-cd-version-2-00.54254/
